OpenAPI specification generation

Strapi provides a command-line tool to generate OpenAPI specifications for your applications.

The CLI tool automatically creates comprehensive API documentation that describes all available endpoints, parameters, and response formats in your Strapi application's Content API. Among the possible use cases, the generated specification can then be easily integrated into documentation tools like Swagger UI .

🚧 Experimental feature

The OpenAPI generation feature is currently experimental. Its behavior and output might change in future releases without following semantic versioning. For additional information and context, please refer to the Strapi Contributor Docs .

Generating an OpenAPI specification​

The OpenAPI generation tool is included with Strapi core and doesn't require additional installation. You can use it directly from the command line in any Strapi project to generate comprehensive API documentation.

CLI usage​

Executing the command without any arguments will generate a specification.json file at the root of your Strapi folder project:

yarn strapi openapi generate

You can also path an optional --output argument to specify the path and filename, as in the following example:

yarn strapi openapi generate --output ./docs/api-spec.json

Specification structure and content​

The generated OpenAPI specification follows the OpenAPI 3.1.0 standard and could look like in the following shortened example:

{
  "openapi": "3.1.0",
  "x-powered-by": "strapi",
  "x-strapi-version": "5.21.0",
  "info": {
    "title": "My Strapi API",
    "description": "API documentation for My Strapi API",
    "version": "1.0.0"
  },
  "paths": {
    "/api/articles": {
      "get": {
        "operationId": "article/get/articles",
        "parameters": [
          {
            "name": "fields",
            "in": "query",
            "schema": {
              "type": "array",
              "items": { "type": "string" }
            }
          }
        ],
        "responses": {
          "200": {
            "description": "Successful response",
            "content": {
              "application/json": {
                "schema": {
                  "type": "object",
                  "properties": {
                    "data": {
                      "type": "array",
                      "items": { "$ref": "#/components/schemas/Article" }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
  },
  "components": {
    "schemas": {
      "Article": {
        "type": "object",
        "properties": {
          "id": { "type": "integer" },
          "title": { "type": "string" },
          "content": { "type": "string" }
        }
      }
    }
  }
}
Download an example of a complete specification file

The generated OpenAPI specification includes all available API endpoints in your Strapi application, and information about these endpoints, such as the following:

  • CRUD operations for all content types
  • Custom API routes defined in your application
  • Authentication endpoints for user management
  • File upload endpoints for media handling
  • Plugin endpoints from installed plugins

Integrating with Swagger UI​

With the following steps you can quickly generate a Swagger UI-compatible page:

  1. Generate a specification:

    yarn strapi openapi generate --output ./public/swagger-spec.json

  2. Update the /config/middlewares.js configuration file with the following code:

    /config/middlewares.js
    module.exports = [
      'strapi::logger',
      'strapi::errors',
      {
        name: 'strapi::security',
        config: {
          contentSecurityPolicy: {
            useDefaults: true,
            directives: {
              'script-src': ["'self'", "'unsafe-inline'", 'https://unpkg.com'],
              'style-src': ["'self'", "'unsafe-inline'", 'https://unpkg.com'],
              'connect-src': ["'self'", 'https:'],
              'img-src': ["'self'", 'data:', 'blob:', 'https:'],
              'media-src': ["'self'", 'data:', 'blob:'],
              upgradeInsecureRequests: null,
            },
          },
        },
      },
      'strapi::cors',
      'strapi::poweredBy',
      'strapi::query',
      'strapi::body',
      'strapi::session',
      'strapi::favicon',
      'strapi::public',
    ];

    This will ensure the Swagger UI display from unpkg.com is not blocked by Strapi's CSP policy handled by the security middleware.

  3. Create a public/openapi.html file in your Strapi project to display the Swagger UI, with the following code:

    <!DOCTYPE html>
    <html>
      <head>
        <title>API Documentation</title>
        <link
          rel="stylesheet"
          type="text/css"
          href="https://unpkg.com/swagger-ui-dist@5.0.0/swagger-ui.css"
        />
      </head>
      <body>
        <div id="swagger-ui"></div>
        <script src="https://unpkg.com/swagger-ui-dist@5.0.0/swagger-ui-bundle.js"></script>
        <script src="https://unpkg.com/swagger-ui-dist@5.0.0/swagger-ui-standalone-preset.js"></script>
        <script>
          window.onload = function () {
            SwaggerUIBundle({
              url: './swagger-spec.json',
              dom_id: '#swagger-ui',
              presets: [
                SwaggerUIBundle.presets.apis,
                SwaggerUIStandalonePreset
              ],
              layout: 'StandaloneLayout',
            });
          };
        </script>
      </body>
    </html>

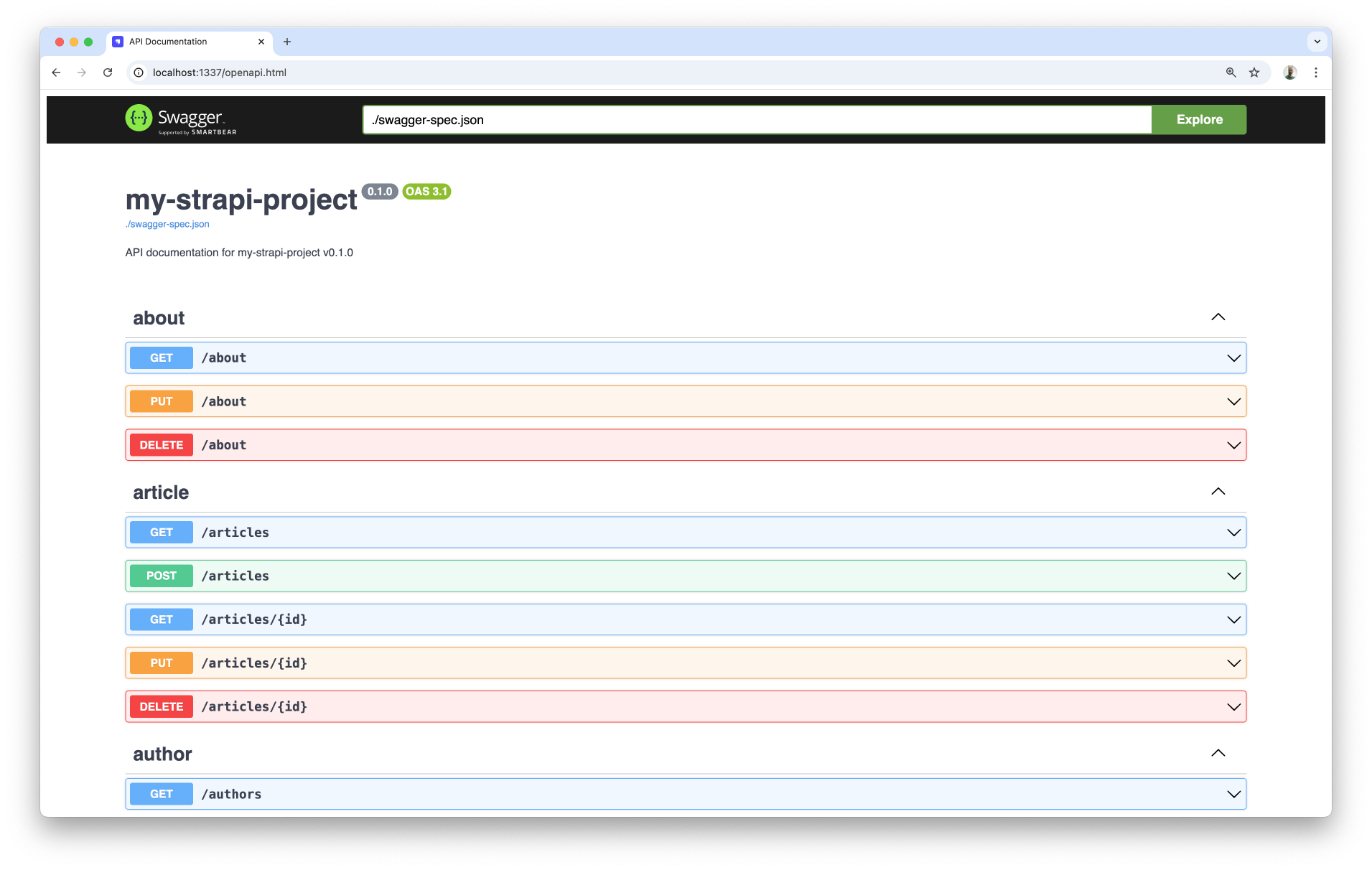

  4. Restart the Strapi server with yarn develop or npm run develop and visit the /openapi.html page. The Swagger UI should be displayed:

    Swagger UI example with Strapi OpenAPI specification
